Question on OODB

12 min read

Question 1 (Motivation & Comparison)

Explain three key limitations of traditional Relational Database Management Systems (RDBMS) that motivated the development of Object-Oriented Database Management Systems (OODBMS), and briefly describe how OODBMS address these specific limitations.

Solution:

The text highlights several limitations of traditional RDBMS that spurred OODBMS development:

  1. Limited Data Type Support: RDBMS typically support only basic, atomic data types (integer, string, decimal) within columns. They struggle with complex data structures like nested objects, lists, sets, or large unstructured objects (e.g., CAD models, multimedia files).

    • OODBMS Address: OODBMS intrinsically support complex objects. They allow attributes of an object to be objects themselves, including collections (sets, lists, bags) or embedded objects, thus naturally modeling complex, non-first-normal-form data structures required by applications like CAD/CAM or multimedia systems.

  2. Lack of Type System Extensibility: RDBMS generally do not allow users to define new, custom data types that integrate seamlessly into the database schema and query language. Extending the type system is often difficult or impossible.

    • OODBMS Address: OODBMS feature extensibility as a core concept, often through their tight integration with object-oriented programming languages. Users can define new classes (types) with specific structures (attributes) and behaviors (methods), extending the database’s capabilities to handle domain-specific data and operations.

  3. Impedance Mismatch: When using RDBMS with object-oriented or procedural programming languages, a significant “impedance mismatch” occurs. SQL operates on sets of records (tables), while programming languages often work with individual objects or records one at a time. This requires complex mapping code to translate between the two models, hindering seamless development.

    • OODBMS Address: OODBMS aim for computational completeness in their data manipulation language (often integrated directly with an OOPL like C++ or Smalltalk) and provide persistence for programming language objects. This creates a more seamless environment where the database objects and programming objects share the same model, reducing or eliminating the impedance mismatch. Programmers can manipulate persistent database objects using the native programming language constructs.

Question 2 (Core OO Feature: Identity)

Define Object Identity (OID) as a mandatory feature of OODBMS. Explain its significance compared to the key-based identification used in RDBMS, particularly concerning object lifetime and value independence.

Solution:

Definition: Object Identity (OID) is a mandatory feature of OODBMS where every object instance stored in the database is assigned a unique identifier. This OID is:

  • Unique: No two objects have the same OID.
  • System-Generated: Typically assigned by the OODBMS itself when an object is created.
  • Immutable: The OID remains constant throughout the object’s entire lifetime, regardless of any changes to the object’s state (attribute values) or location.
  • Independent of Value: The OID is distinct from the object’s attributes or its physical storage address.

Significance Compared to RDBMS Keys:

  1. Value Independence: In RDBMS, entities are primarily identified by user-defined primary keys, which are composed of one or more attribute values (e.g., Social Security Number, Order ID). If these attribute values change, the identity, conceptually, might seem to change, or updates can become complex (cascading updates, potential violation of foreign keys if not handled carefully). OID, being independent of attribute values, allows an object’s state to change freely without affecting how it is referenced or identified. Two objects can even have identical attribute values but still be distinct because they possess different OIDs.

  2. Lifetime Management: An OID persists for the entire life of the object within the database. This stable identity is crucial for tracking objects over time, especially in applications with long transactions or versioning. In RDBMS, if a key value needs to change, managing references (foreign keys) can be problematic. With OID, references remain valid even if all user-visible attributes of the object change.

  3. Object Sharing and Complex Structures: OIDs provide a direct, unambiguous way to reference objects. This simplifies the representation of complex relationships, object sharing (multiple objects referencing the same sub-object), and circular references, which can be more cumbersome to model and query using value-based foreign keys in RDBMS.

Question 3 (Manifesto: Synthesis of Features)

According to the ‘manifesto’ described in the text, an OODBMS combines features from both traditional DBMS and Object-Oriented Systems. Identify and explain two mandatory features inherited from Object-Oriented Systems (refer to Figure 1, excluding complex objects and object identity) and two mandatory features inherited from Database Management Systems, highlighting their importance in an OODBMS context.

Solution:

The OODBMS definition combines features from both domains:

Mandatory Features from Object-Oriented Systems (excluding complex objects & identity):

  1. Encapsulation: This principle dictates that an object’s internal state (data/attributes) is hidden and can only be accessed or modified through a defined set of operations (methods) that are part of the object’s public interface (protocol).

    • Importance in OODBMS: Encapsulation enhances data integrity and modularity within the database. It ensures that data is manipulated consistently according to predefined rules embedded in the methods, preventing arbitrary or invalid changes to an object’s state. It also allows the internal implementation of an object to change without affecting external code that uses it, as long as the public interface remains stable.

  2. Types and Classes / Class Hierarchy (Inheritance): OODBMS must support either types (compile-time checking) or classes (run-time grouping of objects with shared structure and behavior). Crucially, they must support class or type hierarchies, allowing subclasses/subtypes to inherit attributes and methods from their superclasses/supertypes.

    • Importance in OODBMS: Inheritance promotes code and schema reuse, reducing redundancy and development effort. It allows for the creation of specialized object types that share common characteristics, naturally modeling is-a relationships (e.g., ArtBook is a Book). This structure facilitates polymorphism (using overriding and late binding), where the same operation name can invoke different implementations depending on the specific subclass of the object it’s applied to.

Mandatory Features from Database Management Systems:

  1. Persistence: Data must outlive the execution of the program that created it. Objects created or modified during a program session must be stored permanently on secondary storage so they can be retrieved later.

    • Importance in OODBMS: This is the fundamental database characteristic. Without persistence, the system would just be an in-memory object system. Persistence allows OODBMS to manage long-lived, shared data, bridging the gap between transient program objects and permanent database storage.

  2. Concurrency Control: The system must provide mechanisms to manage simultaneous access to data by multiple users or processes, ensuring data consistency and preventing conflicts (e.g., lost updates, inconsistent reads).

    • Importance in OODBMS: Like any multi-user database system, OODBMS must handle concurrent operations safely. This is crucial for applications where multiple users interact with the same complex object structures, ensuring that transactions are isolated and the database remains in a consistent state despite parallel activities.

Question 4 (Impedance Mismatch & Completeness)

Describe the ‘impedance mismatch’ problem encountered when using RDBMS with conventional programming languages. How do OODBMS aim to achieve ‘computational completeness’ and overcome this mismatch?

Solution:

Impedance Mismatch:

The impedance mismatch refers to the significant differences between the data models and operational paradigms of traditional RDBMS (based on the relational model and set-oriented SQL) and conventional programming languages (often object-oriented or procedural, working with individual objects/records and complex in-memory structures like pointers/references, lists, etc.). Key aspects of this mismatch include:

  • Data Model Differences: RDBMS use tables of atomic values (1NF), while programming languages use richer structures like objects, classes, inheritance, pointers/references, and collections. Mapping between these requires translation layers.
  • Operational Differences: SQL is declarative and set-oriented (operates on entire sets of tuples/rows at once). Programming languages are typically imperative and navigational (operate on one object/record at a time, often following pointers/references).
  • Type System Differences: RDBMS have a limited set of built-in types, whereas programming languages often have richer, user-extensible type systems.

OODBMS Approach to Overcoming Mismatch:

OODBMS aim to overcome this impedance mismatch primarily through two related mandatory features:

  1. Seamless Integration / Persistence: OODBMS tightly integrate with an object-oriented programming language (e.g., C++, Java, Smalltalk). They allow the objects defined and manipulated within the programming language to be made persistent directly. This means the programmer works with a single, unified object model for both transient (in-memory) and persistent (database) data, largely eliminating the need for translation layers.
  2. Computational Completeness: The data manipulation language (DML) of an OODBMS should be computationally complete. This means the language used to interact with the database has the full expressive power of a general-purpose programming language (like C++ or Pascal), capable of performing complex computations, loops, conditional logic, etc. Unlike SQL, which is relationally complete but not computationally complete (it can’t express all possible computations), the OODBMS DML (often being the OOPL itself extended with database capabilities) allows complex operations and application logic to be expressed directly within the database interaction context, further reducing the need to switch between different language paradigms.

By providing persistence for language objects and using a computationally complete language for data manipulation, OODBMS create a “seamless join between program and database,” significantly reducing or eliminating the impedance mismatch.

Question 7 (Persistence Concept)

Define ‘persistence’ in the context of OODBMS. Describe the two main approaches mentioned in the text for making objects persistent and discuss why this feature is fundamental for integrating programming language objects with database capabilities.

Solution:

Definition of Persistence:

Persistence, in the context of OODBMS (and databases generally), is the characteristic of data (in this case, objects) that allows it to survive beyond the execution scope of the program that created it. Persistent objects are stored permanently on secondary storage (like disks) and can be retrieved, accessed, and modified in later program sessions or by different programs, maintaining their state and identity across process terminations. This contrasts with transient objects, which exist only in memory during a program’s execution and are lost when the program ends.

Approaches to Making Objects Persistent (as per the text):

The text suggests two possible ways persistence might be specified at object creation time:

  1. Explicit Call to a Persistence Function: Persistence is granted on an object-by-object basis. The programmer explicitly invokes a specific function or method (e.g., make_persistent(myObject) or myObject.persist()) to mark certain objects for storage in the database. Only objects explicitly marked this way will survive program termination.
  2. Automatic Persistence via Persistent Types: Persistence is associated with the class/type of the object. If a class is declared as a “persistent type” (e.g., inherits from a special Persistent base class or declared using specific keywords), then all instances created from that class are automatically made persistent by the OODBMS without requiring explicit calls for each object. The act of instantiating an object of a persistent class makes it persistent.

Fundamental Importance for Integration:

Persistence is the cornerstone feature that transforms an object-oriented programming system into an object-oriented database system. Its importance lies in:

  • Bridging Program and Database: It allows the rich object models developed in OOPLs (with complex structures, inheritance, encapsulation, behavior) to be directly stored and managed by the database system without loss of semantics.
  • Eliminating Impedance Mismatch: By allowing program objects to persist directly, it drastically reduces the need for mapping layers between the application’s object model and a different database model (like relational tables). Programmers can work more seamlessly with database objects using familiar language constructs.
  • Data Longevity and Sharing: It enables data created by one application or user session to be available over long periods and shared among multiple applications and users, which is the primary purpose of any database system.
  • Foundation for Other DBMS Features: Persistence is the prerequisite for applying other crucial DBMS features like concurrency control, recovery, querying, and storage management to objects. Without persistent objects, these database functionalities would have no long-term data to operate on.

GEMSTONE

Question 8 (System Example: GemStone Architecture)

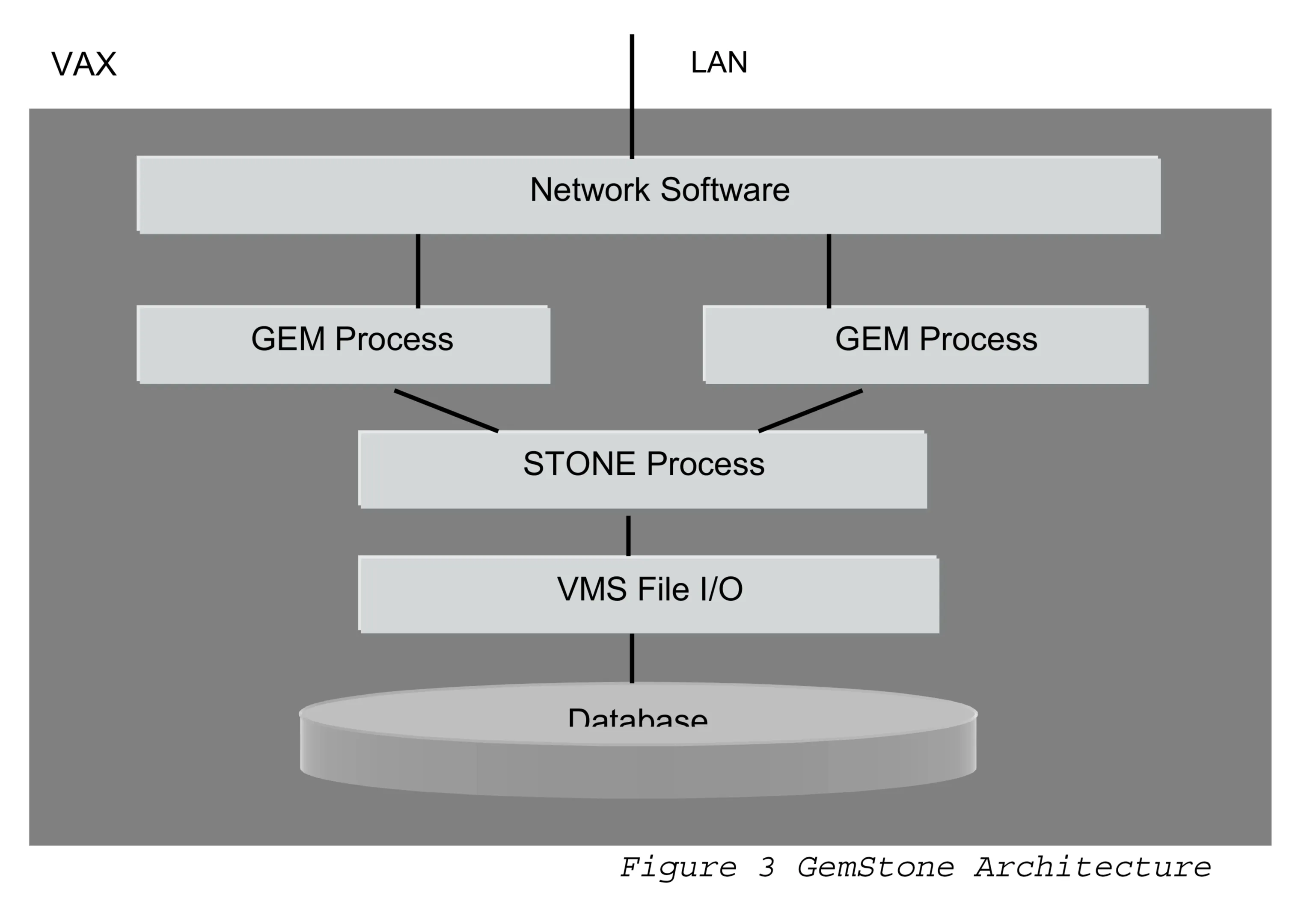

Describe the client-server architecture of the GemStone OODBMS as presented in the text. Explain the roles of the ‘Gem’ and ‘Stone’ processes and how object persistence and identification (OOPs) are managed within this architecture.

Solution:

The GemStone OODBMS exhibits a client-server architecture, distributed over two main process types: Architecture Overview:

  • Client-Server Model: The system operates with distinct client and server components communicating over a network (LAN is shown in Figure 3).
  • Two Main Processes: The core functionality is divided between the Gem process and the Stone process.

Roles of the Processes:

  1. Stone Process:
    • Location: Runs on the server machine.
    • Functionality: This process is the database engine core. It delivers the fundamental data management capabilities. Its responsibilities include:
      • Disk I/O: Managing the reading and writing of objects to/from physical storage (the Database).
      • Concurrency Control: Handling simultaneous access from multiple clients/Gem processes.
      • Recovery: Ensuring database consistency and durability in case of failures.
      • Authorization: Enforcing access controls.
      • Object Management: Managing the object table and mapping OOPs to physical locations.
  2. Gem Process:
    • Location: Can run either on the client machine or potentially on the server machine itself.
    • Functionality: This process acts as the interface for applications and users to interact with the database managed by Stone. Its responsibilities include:
      • Compilation Facilities: Compiling OPAL code (GemStone’s language) or handling language bindings.
      • Browsing Capabilities: Allowing users/developers to explore the database schema and objects.
      • User Authentication: Verifying user credentials before allowing access.
      • Application Logic Execution: Executing application code that interacts with persistent objects (sending messages, invoking methods). It communicates with the Stone process to fetch, store, and manage objects.

Object Persistence and Identification:

  • Persistence: The text states that in GemStone, all objects are made persistent. This implies an automatic persistence model likely tied to object creation within the GemStone environment, managed ultimately by the Stone process which handles storage.
  • Identification (OOPs): GemStone uses unique object identifiers called Object-Oriented Pointers (OOPs).
    • Role: An OOP serves as the logical identifier for an object, similar to the general concept of OID.
    • Mapping: The Stone process maintains an object table. This table maps each OOP to the actual physical disk location (or memory location if cached) of the corresponding object’s data. This level of indirection allows objects to be moved on disk for optimization purposes without changing their identity (OOP) or invalidating references. When a Gem process needs an object, it uses the OOP, and Stone resolves it to the physical data via the object table.
